SPECIFICATIONS

Brand: COSWHEEL

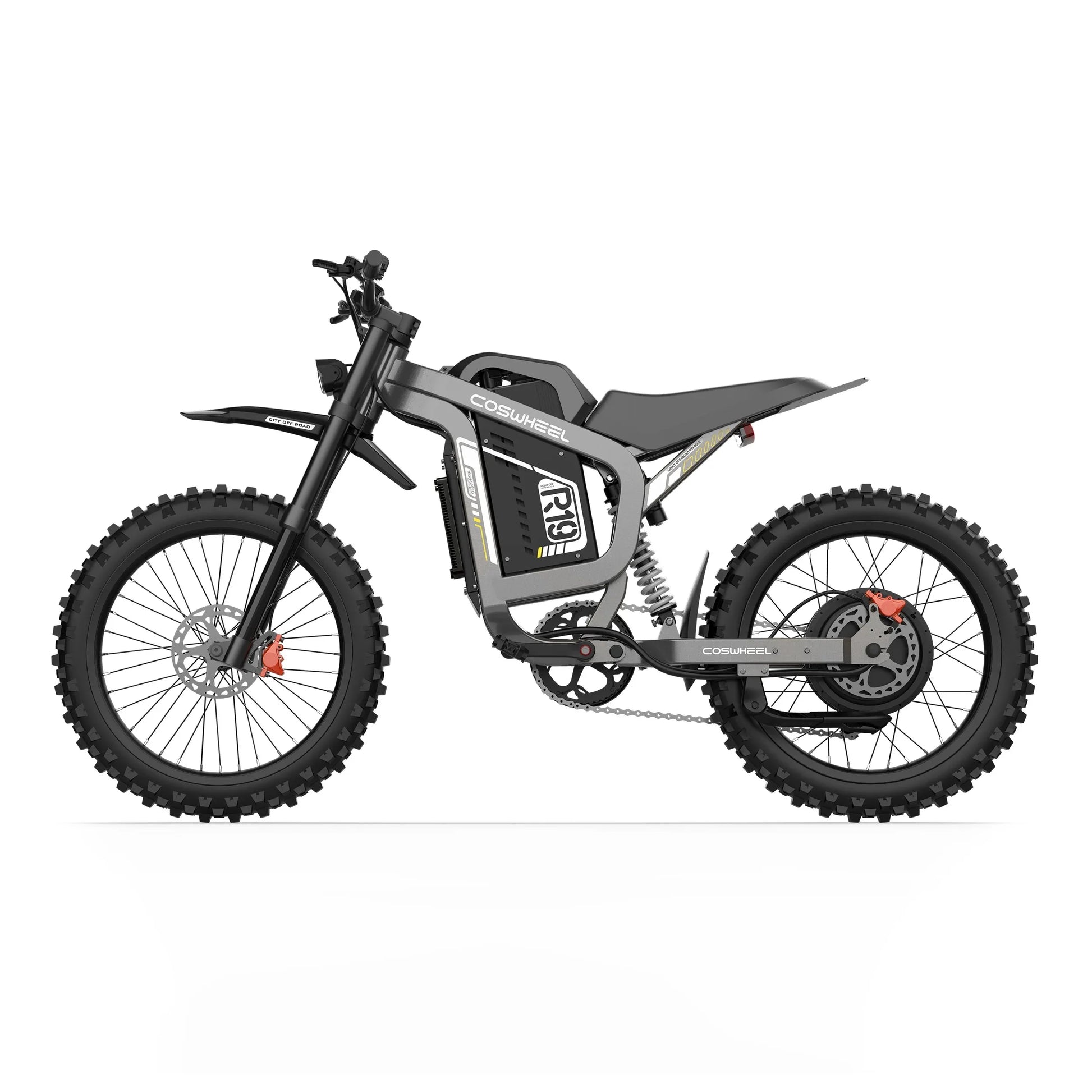

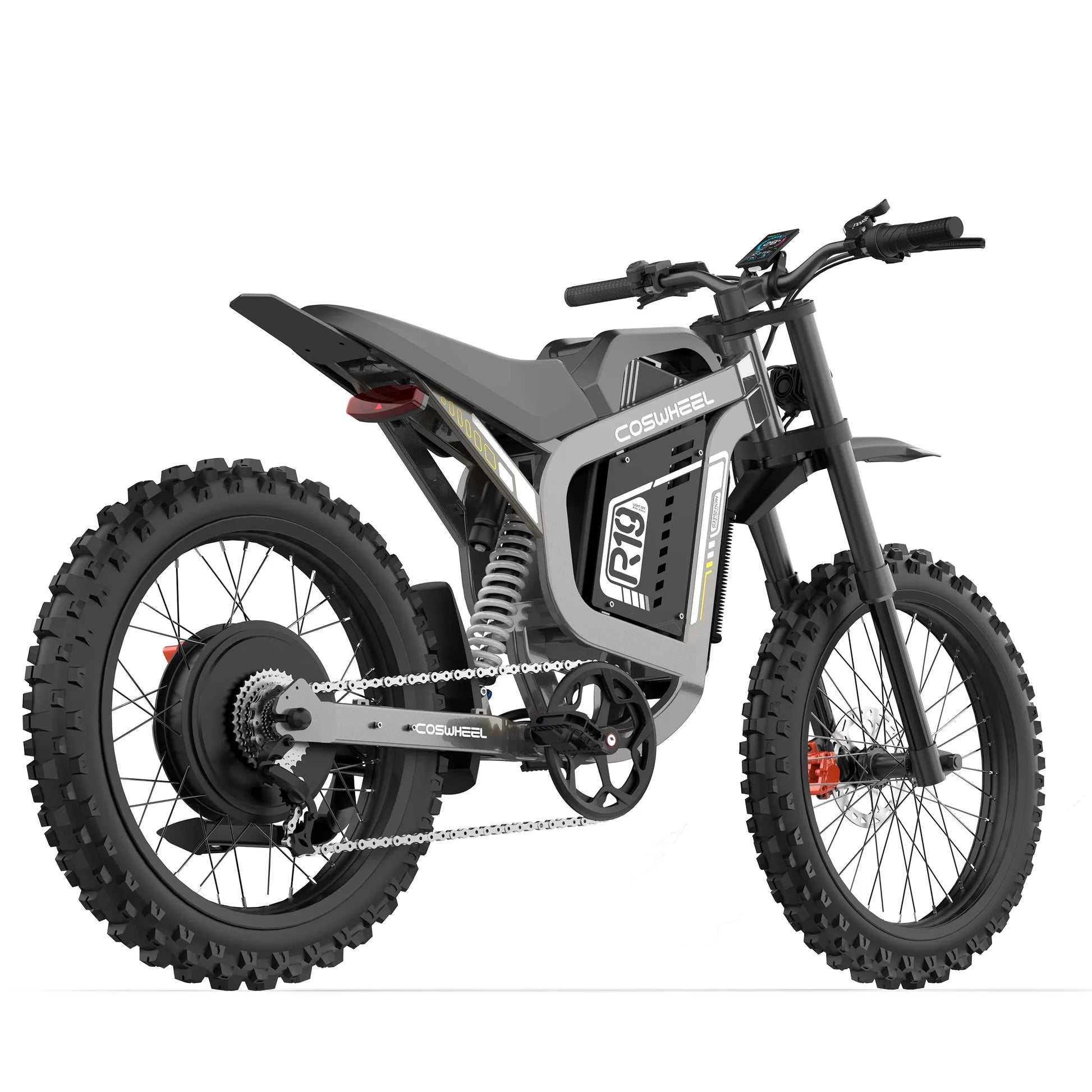

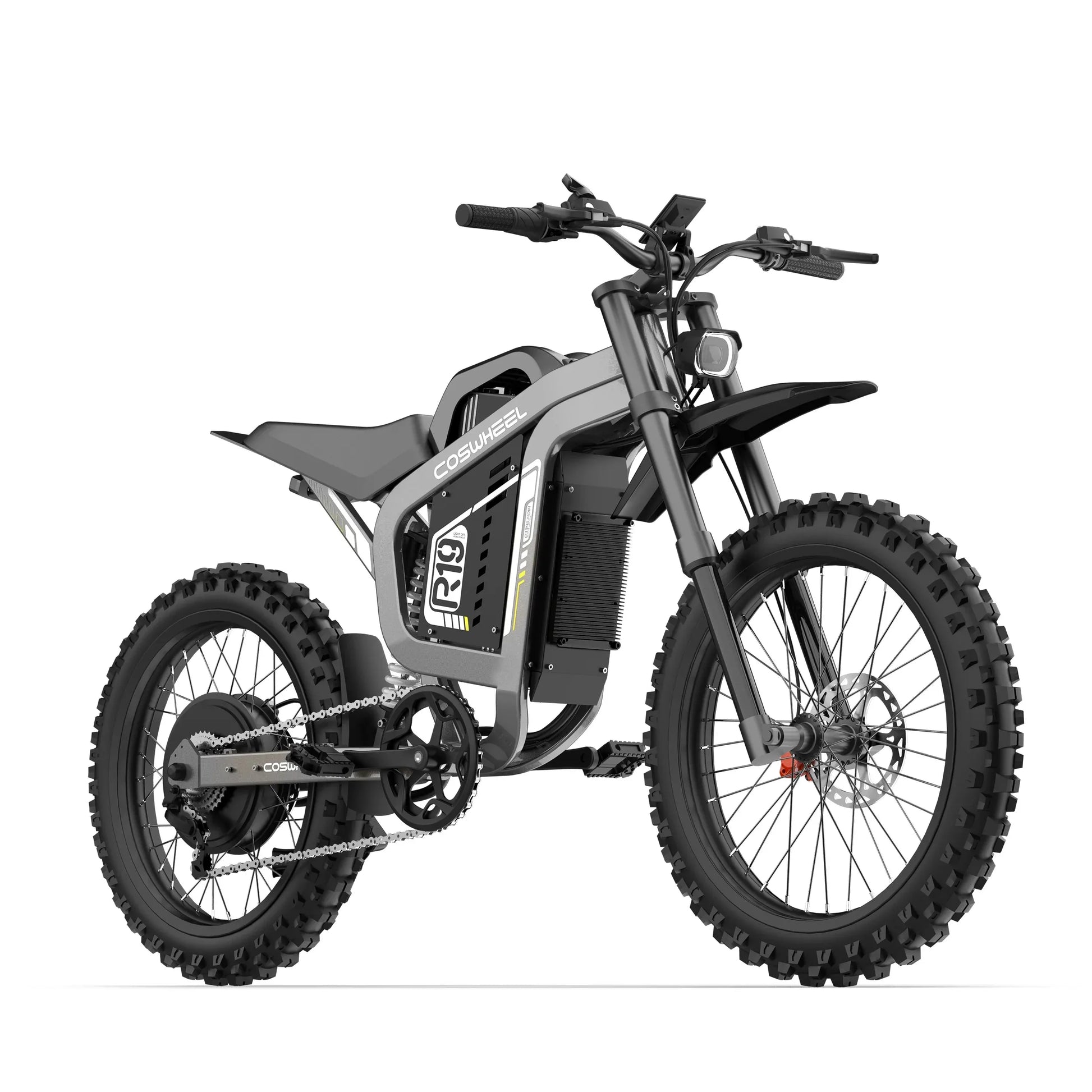

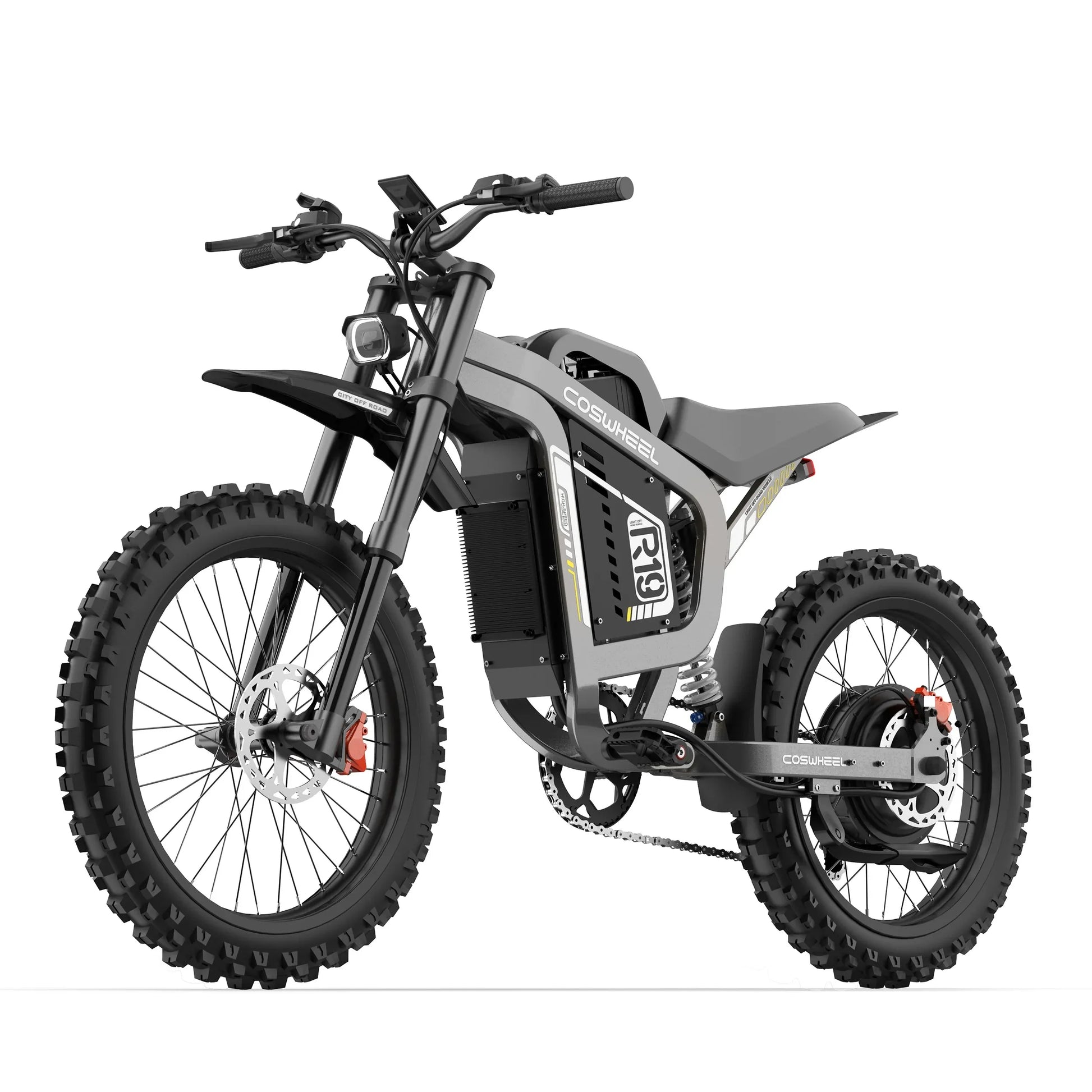

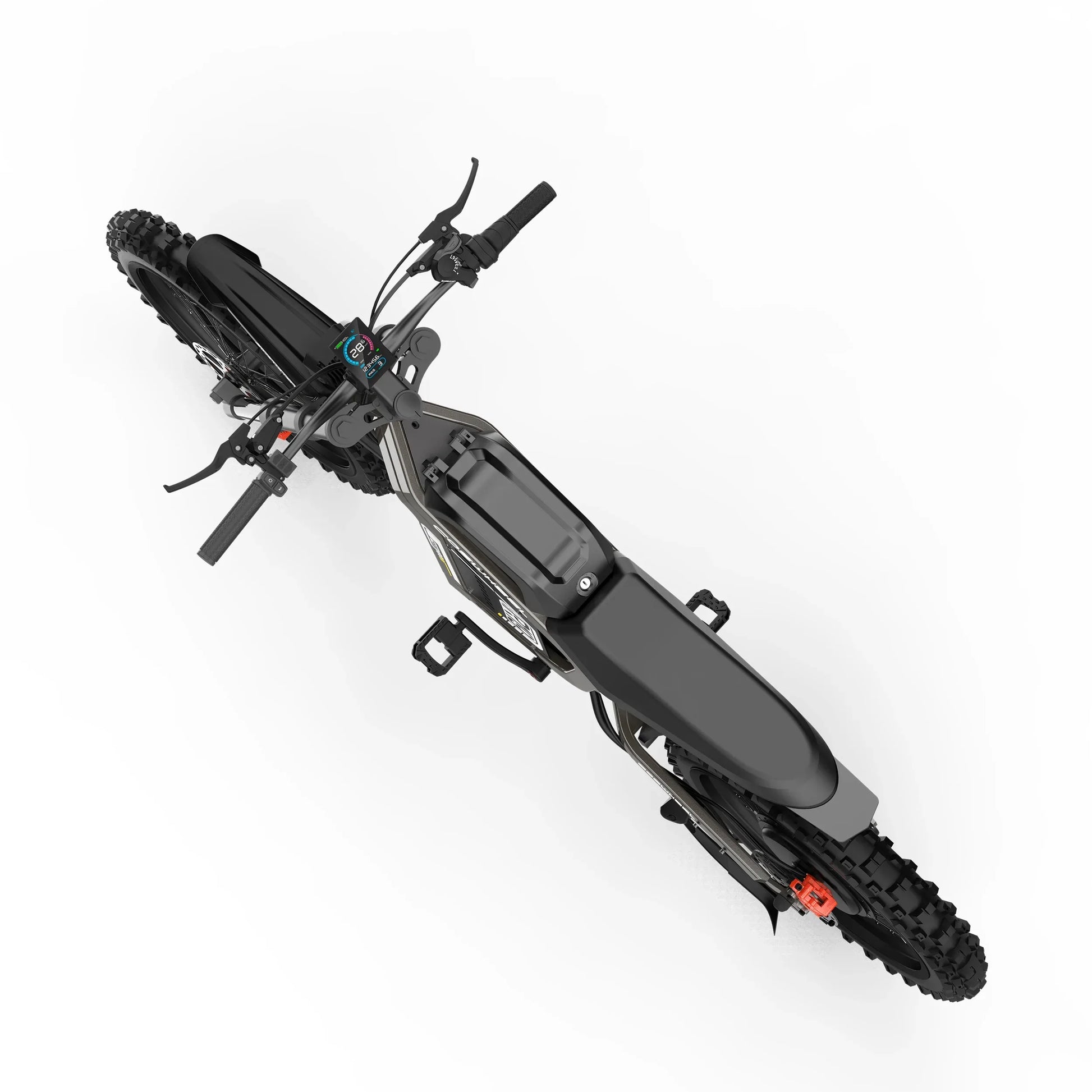

Model: R19

Type: Electric Motorbike

Color: Gray

Specifications

Top Speed: Class 2/3, 50 Mph (80Km/h)

Range: 75+miles (120km) in Class-2 throttle-only mode (pure electricity); 145miles (200km) in Class-1 PAS (pedal assist)

Motor: 72V Peak 6000W (Rated 3000W) Brushless Rear Hub Motor 120Nm

Battery: 72V 40Ah Lithium Battery

Energy: 2880Wh

Front Suspension: Inverted hydraulic shock absorber with adjustable damping, 200mm Travel

Rear Suspension: Adjustable Damping, 300mm Travel

Front Brakes: Double piston hydraulic oil brake, Equipped with 220mm*2.8 brake disc

Rear Brakes: Double piston hydraulic oil brake, Equipped with 180mm*2.8 brake disc

Front Tires: 70/100-19 professional off-road tire

Rear Tires: 80/100-19 professional off-road tire

Throttle: Grip Twist Throttle

Charger: 84V6A Charger

Charging Time: 6.0-7.0 Hours

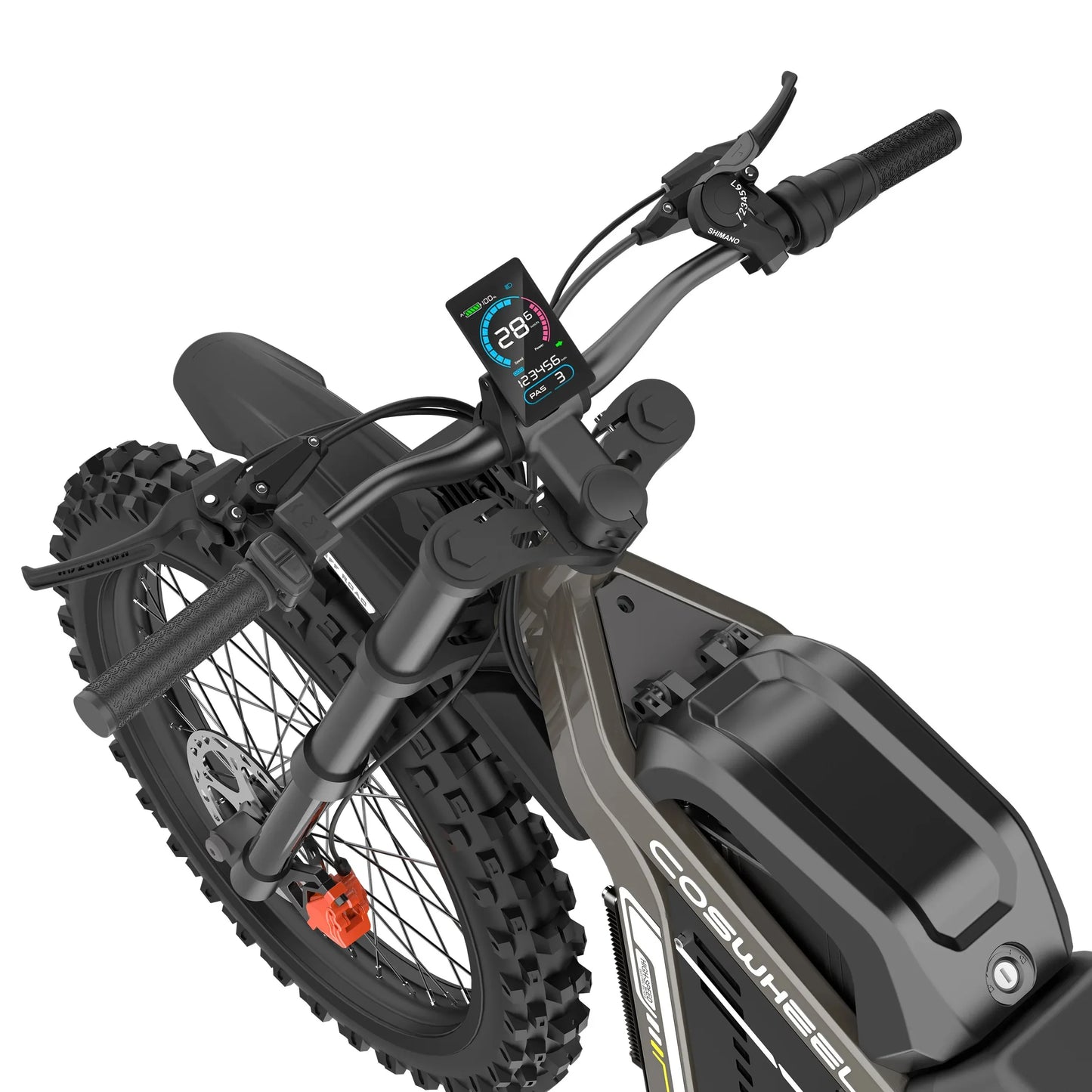

Display: 3.5" LCD high-brightness color screen

Controller: 72V 80A

Front Light: 12V Headlight

Rear Light: LED

Pedal Assist: 3 Levels

Unlock Method: NFC Card

Sensors: Speed Sensor

Frame: Hydroformed Triple-Butted 6061-T6 Aluminum Alloy

Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate

Rear Derailleur: Shimano 7-Speed

Chain: 7-speed Anti-rust, 1/2" * 3/32"

Handlebars: Split Handlebar, φ32 φ22 Sand Black

Suitable Height: 5'1" - 6'5"

Seat Height: 32.6" (83cm)

Bike Height: 41.7" (106cm)

Wheelbase: 47.8" (121.5cm)

Handlebar Width: 27.2" (69cm)

Bike Weight: ≥99lbs (with Battery) (≥45kg)

Maximum Load: 440lbs (200kg)

Safe Load: 330lbs (150kg)

Overall Size: 74.8" * 27.6" *43" (190*70*109cm)

Package Contents

1 x Electric Bike

2 x Fender

1 x Charger

1 x User Manual

1 x Tool Bag
